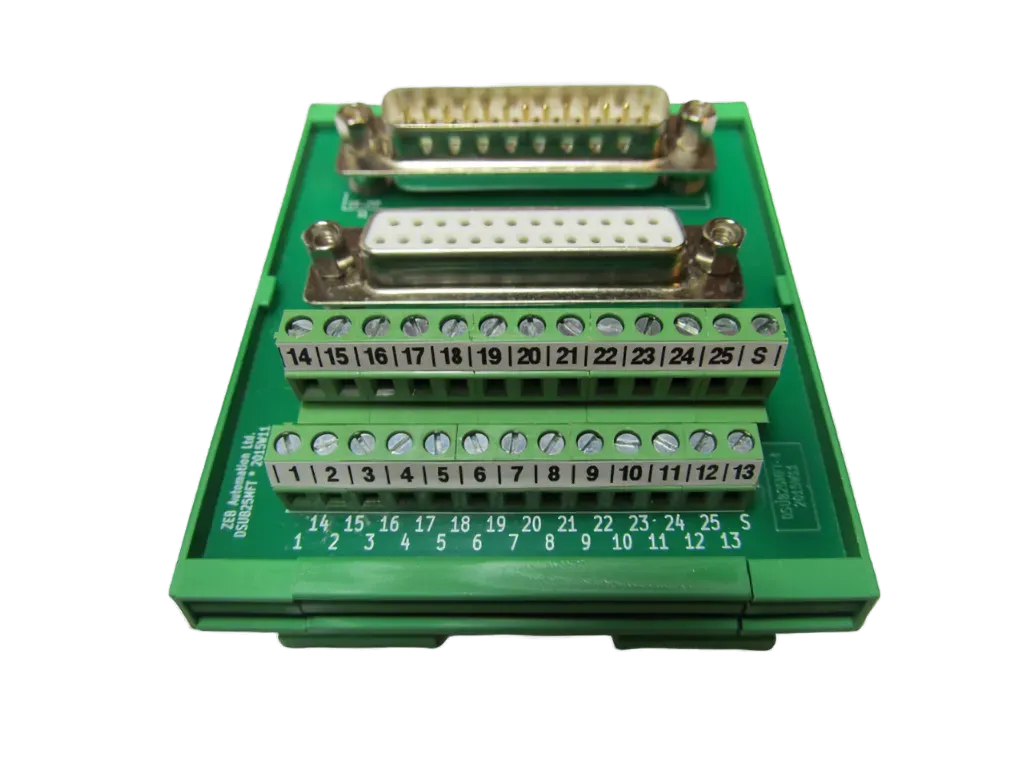

Break-out module 25-pin D-Sub connector on screw terminals
Product Information
Item No. dsub25mft
Our D-Sub break-out modules connect D-Sub connectors and screw terminals uncomplicatedly. With various plugs and sockets, they enable direct parallel connection. The terminals facilitate the connection with existing fixed wiring.
35,00 €
pcs.
Offers are valid for businesses only
All prices are excl. VAT
Highlights
- 25-pin D-sub Connector
- Easy connection of D-sub connectors with screw terminals
- Easy connection to existing hardwiring
- Easy installation by snapping onto common mounting rails TS15, TS35 and G32
Availability
Delivery within 1 to 3 business days
Technical Details
General
- D-sub Connector
- Plug + socket
- D-sub Ways
- 25
- D-sub Shell
- DB
- D-sub Lock
- Hex Nut UNC 4-40
- No. of Terminals
- 26 (1-25, S)
- Terminals
- Screw terminals, Pitch 3,81 mm
- Wire Range
- 1 x 1.5 mm² (16 AWG) solid or stranded without ferrule, 1 x 0.5 mm² (20 AWG) ferrule
- Electrical Rating
- 125 VAC / 1 A
- Dimensions
- 70 x 82 x 45 mm³
- Mounting
- Click-on mounting rails TS15 / TS35 / G32
- Mounting Direction
- Any desired
- Weight
- 0.112 kg
- Protection Type
- IP00
- Ambient Conditions
- -5°C .. +65°C under normal installation conditions (in the control cabinet). Suitable protective enclosures with protection against direct sunlight, frost and condensation must be provided for outdoor applications.
- RoHS - Conformity
- Compliance with relevant regulations is ensured. However, no independent analyses are carried out, and the declarations of the upstream suppliers are relied upon.
- Certifications
- CE
- Technology
- Standard Connector on a 2-layer printed circuit board
- EAN / UPC
- 045635937475
- Delivery Contents
- DSUB25MFT
- Customs Tariff Number
- 85340090
- Country of Origin
- Germany
