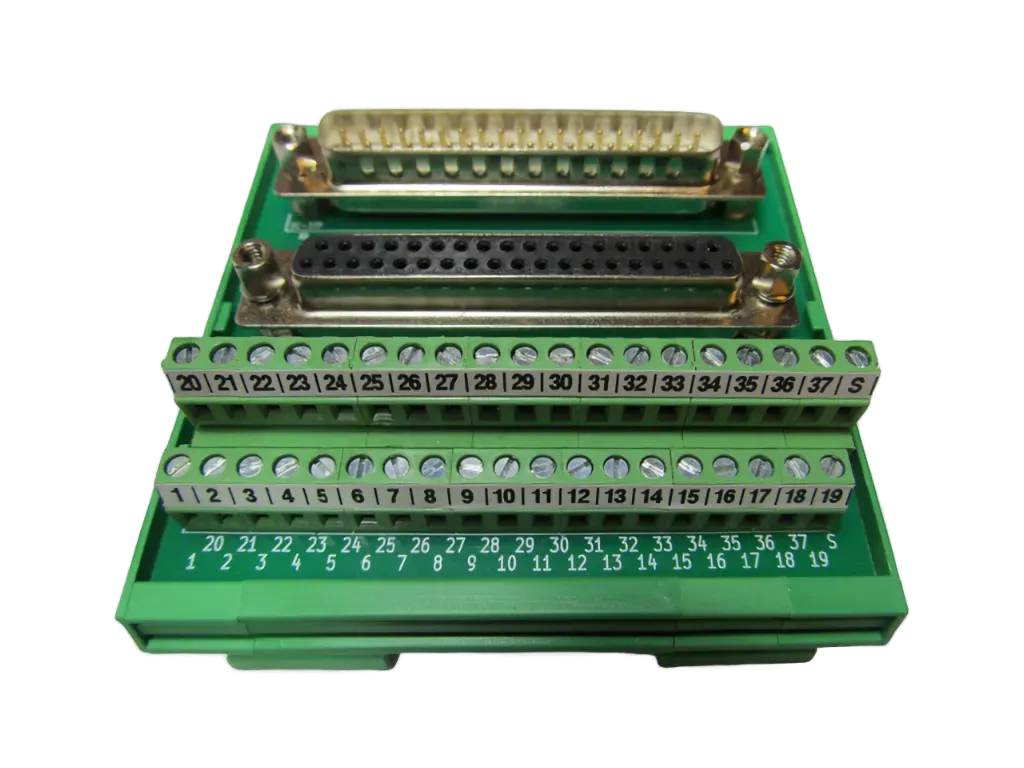

Break-out module 37-pin D-Sub connector on screw terminals
Product Information
Item No. dsub37mft
The break-out modules are used to convert-sub connectors to screw terminals. For simplified storage, both D-sub plugs and sockets of the respective Ways are equipped, which are directly connected in parallel. The necessary lines can be easily connected to an existing fixed wiring through the terminals. For installation in the control cabinet, the module can be snapped onto the common mounting rails TS15, TS35 and G32.
55,00 €
pcs.
Offers are valid for businesses only
All prices are excl. VAT
Highlights
- 37-pin D-sub Connector
- Easy connection of D-sub connectors with screw terminals
- Easy connection to existing hardwiring
- Easy installation by snapping onto common mounting rails TS15, TS35 and G32
Availability
Delivery within 1 to 3 business days
Technical Details
General
- D-sub Connector
- Plug + socket
- D-sub Ways
- 37
- D-sub Shell
- DC
- D-sub Lock
- Hex Nut UNC 4-40
- No. of Terminals
- 38 (1-37, S)
- Terminals
- Screw terminals, Pitch 3,81 mm
- Wire Range
- 1 x 1.5 mm² (16 AWG) solid or stranded without ferrule, 1 x 0.5 mm² (20 AWG) ferrule
- Electrical Rating
- 125 VAC / 1 A
- Dimensions
- 81 x 82 x 45 mm³
- Mounting
- Click-on mounting rails TS15 / TS35 / G32
- Mounting Direction
- Any desired
- Weight
- 0.135 kg
- Protection Type
- IP00
- Ambient Conditions
- -5°C .. +65°C under normal installation conditions (in the control cabinet). Suitable protective enclosures with protection against direct sunlight, frost and condensation must be provided for outdoor applications.
- RoHS - Conformity
- Compliance with relevant regulations is ensured. However, no independent analyses are carried out, and the declarations of the upstream suppliers are relied upon.
- Certifications
- CE
- Technology
- Standard Connector on a 2-layer printed circuit board
- EAN / UPC
- 045635937482
- Delivery Contents
- DSUB37MFT
- Customs Tariff Number
- 85340090
- Country of Origin
- Germany
